PEEK Material Performance

Polyetheretherketone (PEEK) is a high-performance, engineering thermoplastic characterized by an unusual combination of properties. These properties range from high temperature performance to mechanical strength and excellent chemical resistance.

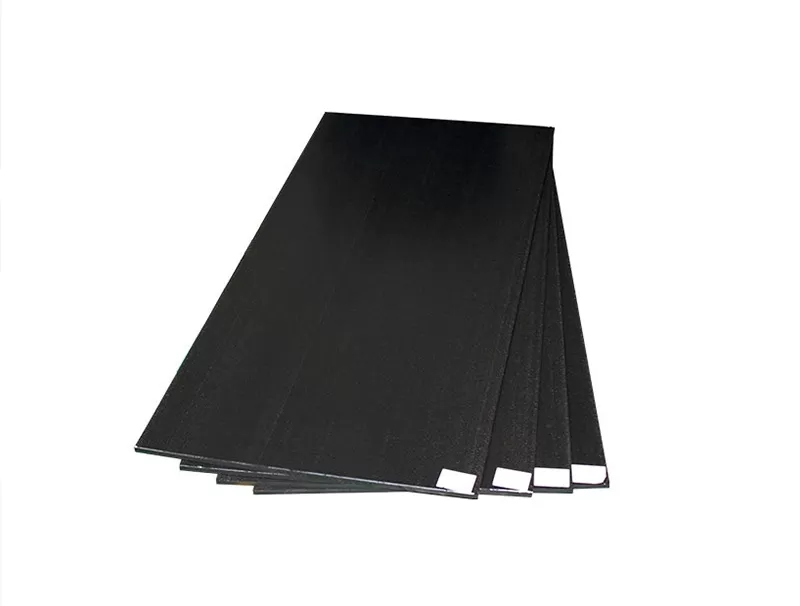

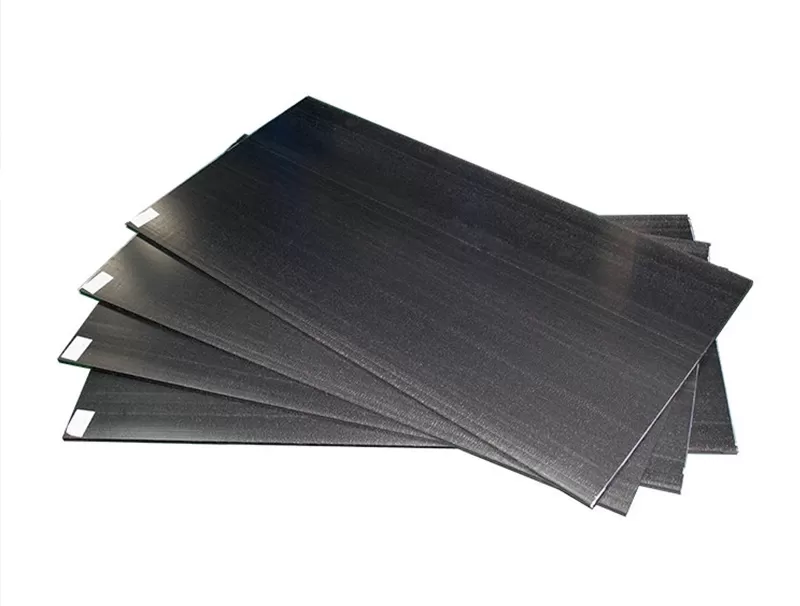

PEEK ESD offers the advanced properties of PEEK partnered with excellent resistance to static. Incredible strength, stability, chemical resistance, and wear and abrasion resistance.

MATERIAL GRADE

ARKPEEK-1000: 100% Natural PEEK

Produced from virgin polyetheretherketone resin and offers the highest toughness and impact resistance of all types.

ARKPEEK-CF30: 30% Carbon Fiber + 70% PEEK

Carbon fibre reinforcement lends the material a high level of rigidity and creep strength, high mechanical strength and heat conductivity values.

ARKPEEK-GF30: 30% Glass Fiber + 70% PEEK

Glass filled PEEK exhibits increased mechanical strength and high rigidity. Improved creep strength and dimensional stability are achieved by this glass filled PEEK. These properties make this material suitable for use in parts which are exposed to high static loads over long periods in high temperature conditions.

ARKPEEK-MOD: 10% Carbon Fiber + 10% PTFE +10% Graphite

high performance engineering plastic with product characteristics including excellent sliding and abrasion & wear resistance, high mechanical strength and high dimensional stability. The long term service temperature range of PEEK Rod is from -30°C to 250°C and has a short term maximum service temperature of 310°C.

NO.	Dimension (mm)	Weight ( g )
1	0.5*700*1000	480
2	1*700*1000	950
3	2*700*1000	1900
4	3*700*1000	2800
5	4*650*1000	3400
6	5*650*1000	4300
7	67×31×1000	2700
8	80x15x1000	1560
9	100x25x1000	3100
10	120x38x1000	5500
11	195×33×1000	8365
12	175×162×1000	36855
13	395×12.5×1000	6419
14	422x15x1000	8229
15	422x66x1000	36207
16	Insulation block (with Utype)280x45x1000	15000
17	600×6×1000	4680
18	600×8×1000	6240
19	600×9×1000	7020
20	600x15x1000	11700
21	600×20×1000	15600
22	600×25×1000	19500
23	600x30x1000	23400
24	600×35×1000	27300
25	600×40×1000	31200
26	600x45x1000	35100
27	600×50×1000	39000
28	600x60x1000	46800
29	800x20x1000	20800
30	800x30x1000	31200

TAGS: PEEK Sheet/ ARKPEEK-ESD
