We are the first one to publish 420°C high temperature nozzle to 3D printer market since year of 2016, now it is the 4th new tech version.

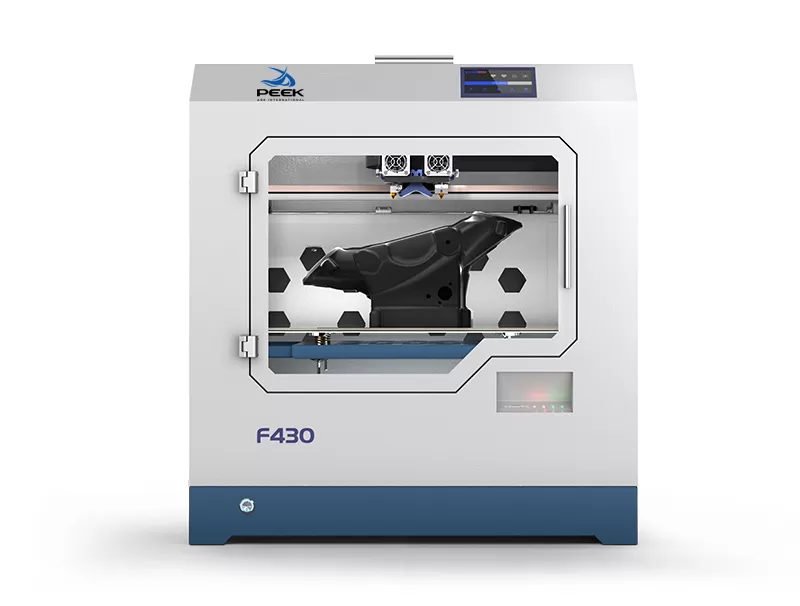

F430 equiped with dual extruders, The left 260°C hotend is able to print with PLA, ABS, PC, Nylon, Carbon fiber, Flexible, etc. The right 420°C hotend is made of martensite steel, which is able to print High performance material like PEEK, ULTEM, etc. The dual hotend is replaceable, which provide more possibility on your application.
TECHNICAL DATA
| Printing | |
| Print Technology | Fused Deposition Modeling（FDM） |
| Build Volume | 400*300*300 mm |
| Number of Nozzles | Double |
| Resolution | 0.04 mm |
| Layer Resolution | 0.02 mm |
| Filament Diameter | 1.75 mm |
| Filament Compatibility | PLA, ABS, Carbon Fiber, Wood, Nylon, PC, PTEG, HIPS, PP, Flexible, TPU, PVA, PEEK, etc. |
| Nozzle Diameter | 0.4mm (0.3 0.5 0.6 0.8 1.0mm) |
| Print File Type | STL, OBJ, AMF, Gcode |
| Speed | |
| Best Printing speed | 55 mm/s |
| Max. Printing speed | 180 mm/s |
| Electrical | |
| Power Requirements | 100-240V, 50-60Hz |
| Max. Power | 1 500 W |
| Screen | 4.3′ Touch Screen |
| Control Chip | ATmega 2560 |
| Storage Media | U Disk |
| Connectivity | USB |
| Special Function | |
| Outage Restored | Save data when power is off |
| Filament Detection | Pause printing when filament run out |
| Automatic Shut-down | Turn off the power automatically when printing is complete |
| Temperature | |
| Ambient Operating Temperature | 15 ℃~32 ℃ |
| Max. Nozzle Temperature | 420 ℃ |
| Max. Bed Temperature | 140 ℃ |
| Max. Chamber Temperature | 70 ℃ |
| Mechanical | |
| Construction | Power-Coated Steel, Aluminum Casting for Motion Components |
| Build Plate | Glass Ceramic Panel |
| Build Plate Leveling | Automatic |
| Extruder | Directly Drive |
| Stepper Motors | 1.8° Step Angle with 1/16 Micro-stepping |
| X Y Positioning Precision | 12.7 μm |
| Z Positioning Precision | 1.25 μm |
| Software Bundle | CreatWare, Simplify 3D, Cura, Slice 3r, etc |
| Supported File Types | STL,OBJ,AMF |
| Operating Systems | Win7/8/10, MacOS |
| Size & Weight | |
| Product Dimensions &Weight | 620*485*680 mm 48 kg |
| Packing Size & Weight | 750*580*720 mm 62 kg |
TAGS: PEEK 3D-Printer
